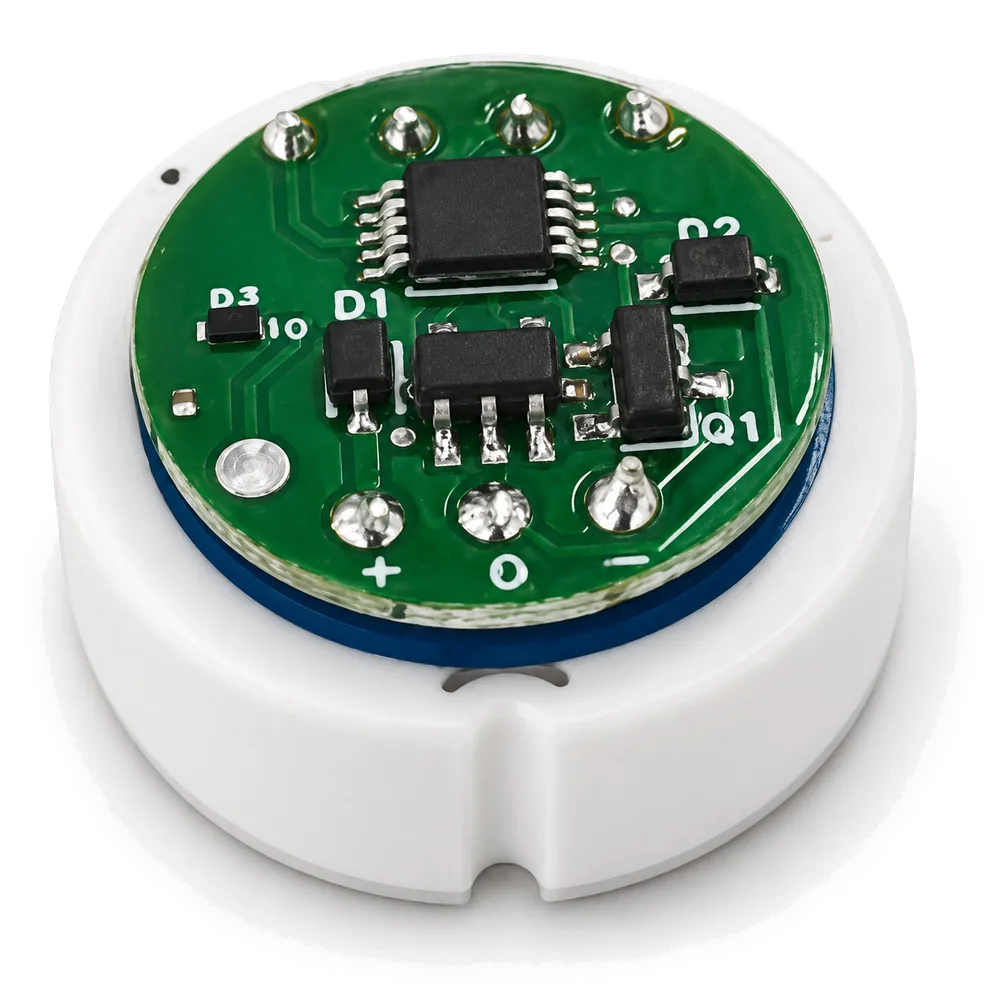

Description
Available in 0~1, 0~1.6 and 0~2.5MPa gauge pressure ranges (customizable up to 3 MPa), with 0.5~4.5V non-ratiometric output and ±1% full-scale measurement accuracy.
Key Specifications
Pressure Type
Gauge
Pressure Range
0~1, 0~1.6, 0~2.5MPa ( customizable up to 3 MPa )
Output Signal
0.5~4.5V
Supply Voltage
4.75~28VDC
Accuracy
±1% FS (Full Scale)
Reference price
US$4.5@ 1k pcs
Per-unit reference price at 1,000-piece quantity. Sample, volume and project pricing available on request.
